SPEEDMAX: Maximum speed with our servo drives

Schmale Maschinenbau GmbH’s innovative SPEEDMAX wire bending machines achieve new, previously unattainable dimensions in performance. The SPEEDMAX S, for example, can produce as many as 200 parts with up to 20 bends each per minute. Schmale uses rotary servo motors in the cyber® power motors series in this innovative machine. These powerful motors were adapted by WITTENSTEIN cyber motor to the customer’s individual requirements, for example by reducing their moment of inertia to a minimum. This provided the starting point for the machine’s high acceleration and extremely short cycle times.

Customized for the application

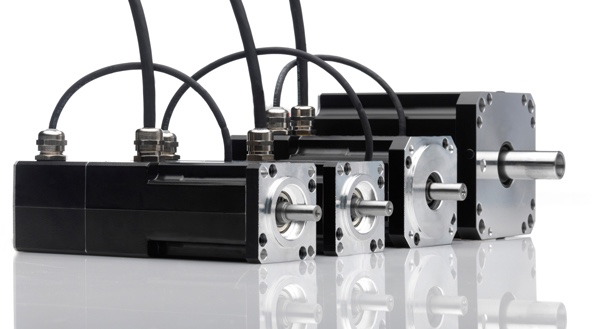

All in all, around 90 servo motors built by WITTENSTEIN are integrated in the SPEEDMAX S – many of them belonging to the cyber® power motors series. Developed together with Schmale, these motors are precisely attuned to the novel machine concept. They feature a holding brake, multiturn absolute encoder, temperature sensor and angled receptacles. Without these servo motors, the SPEEDMAX S and its outstanding performance data would never have been feasible. WITTENSTEIN alpha gearheads are installed alongside the motors in some axes.


SCHMALE MASCHINENBAU: PERFECT-FIT SOLUTIONS TO MEET ANY CUSTOMER NEED

Without the WITTENSTEIN motors, the SPEEDMAX and its performance data would never have been feasible.

SCHMALE MASCHINENBAU: PERFECT-FIT SOLUTIONS TO MEET ANY CUSTOMER NEED

Read more

THE SPEEDMAX SETS THE PACE AMONG WIRE BENDING MACHINES

THE SPEEDMAX SETS THE PACE AMONG WIRE BENDING MACHINES

The SPEEDMAX, too, was developed and implemented with the customer’s needs consistently at the forefront.

Read more

THE DRIVE SOLUTION: OUR SERVO TECHNOLOGY TEAMED UP WITH A SIEMENS SERVO AMPLIFIER

THE DRIVE SOLUTION: OUR SERVO TECHNOLOGY TEAMED UP WITH A SIEMENS SERVO AMPLIFIER

When it came to the servo technology, Schmale opted for the cyber® power motors series.

Read more

HIGHER DYNAMICS DUE TO OPTIMISED MOTOR DESIGN

HIGHER DYNAMICS DUE TO OPTIMISED MOTOR DESIGN

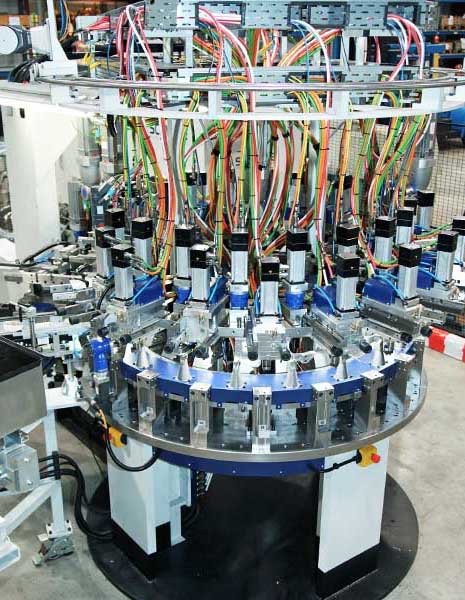

In the maximum configuration a SPEEDMAX has more than twenty servo-driven processing stations arranged in a ring around the rotary table.

Read more

SHORTER CYCLE TIMES, HIGHER OUTPUT

Since there are more cycles, there is also a much higher output. The production costs for the wire bending parts are now far lower as a result.

SHORTER CYCLE TIMES, HIGHER OUTPUT

Read more

OUR SERVO TECHNOLOGY GETS EVEN THE MOST POWERFUL SPEEDMAX MACHINES UP TO SPEED

OUR SERVO TECHNOLOGY GETS EVEN THE MOST POWERFUL SPEEDMAX MACHINES UP TO SPEED

The SPEEDMAX S is the smallest version in this bending machine series.

Read more

Experience the speed of the SPEEDMAX in a video

See for yourself how Schmale’s innovative wire bending machine performs in practice. And learn some fascinating details about the project from Andreas Goseberg of Service & Sales.
